Schneider-Electric
XY2SB72

range of product: Preventa XY2

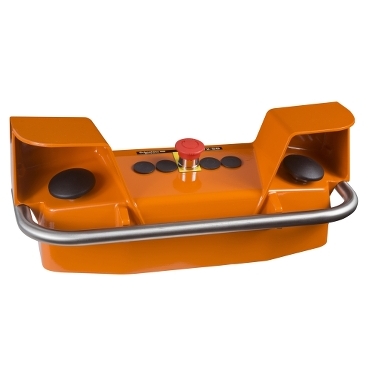

product or component type: Two-hand control station

component name: XY2S

control station composition: 2 push-buttons + 1 emergency stop push-button

control button type: 1 push-button, mushroom, red, 1 NC + 1 NC simultaneous; 2 push-buttons, 1 NC + 1 NO break before make

connections - terminals: Pre-wired terminal block

housing colour: Orange RAL 2008

surface finish: Painted

cable entry: 1 plain hole for M25; 2 plain holes for M20

mechanical durability: 1000000 cycles

contact code designation: A600 AC-15, Ue = 240 V, Ie = 3 A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A

[Ui] rated insulation voltage: 600 V (pollution degree 3) conforming to EN/IEC 60947-1; 600 V conforming to UL 508; 600 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1

positive opening: With conforming to EN/IEC 60947-5-1 appendix K

short-circuit protection: 10 A gG cartridge fuse protection conforming to EN/IEC 60269

electrical durability: 1000000 cycles utilisation category AC-15, operating rate <60 cyc/mn at 120 V, 3 A, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles utilisation category AC-15, operating rate <60 cyc/mn at 230 V, 2 A, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles utilisation category AC-15, operating rate <60 cyc/mn at 24 V, 4 A, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles utilisation category DC-13, operating rate <60 cyc/mn at 110 V, 0.2 A, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles utilisation category DC-13, operating rate <60 cyc/mn at 24 V, 0.5 A, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

electrical reliability: Failure rate < 0.00000001 at 17 V, 0.005 A conforming to EN/IEC 60947-5-4; Failure rate < 0.000001 at 5 V, 0.001 A conforming to EN/IEC 60947-5-4

net weight: 4 kg

standards: ISO 13851; EN 574; EN/IEC 60947-5-1

protective treatment: TC

ambient air temperature for operation: -25…70 °C

ambient air temperature for storage: -40…70 °C

vibration resistance: 5 gn (f= 2…500 Hz) conforming to EN/IEC 60068-2-6

shock resistance: 10 gn for 11 ms conforming to EN/IEC 60068-2-27

electrical shock protection class: Class I conforming to EN/IEC 61140

IP degree of protection: IP65 conforming to EN/IEC 60529

Sustainable offer status: Green Premium product

REACh Regulation: Free of Substances of Very High Concern above the threshold

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free: Yes

RoHS exemption information: Yes

China RoHS Regulation: X

Environmental Disclosure: ENVPEP111058EN

WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
