Schneider-Electric
XAPM3206

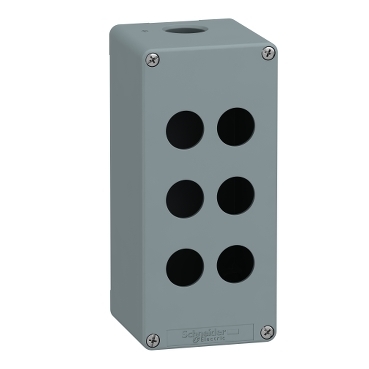

die-cast empty control station - XAPM - Ø22- zinc alloy- 6 openings in 2 columns
Barcode: 3389110312799
Tariff code: 8538100000

This product is discontinued.

Please contact us for possible replacement product options.

Link to the manufacturers site: XAPM3206 - die-cast empty control station - XAPM - Ø22- zinc alloy- 6 openings in 2 columns

Main

range of product: Harmony XAP

product or component type: Die-cast empty control station

device short name: XAPM

product destination: For Ø 22 mm control and signalling units

product front plate size: 80 x 175 mm

usable depth: 49 mm

number of cut-out: 6 cut-outs

colour of base of enclosure: Blue

colour of cover: Blue

material: Zinc alloy

cable entry: 1 hole with blanking plug for cable gland, clamping capacity: 18 mm; 1 hole without blanking plug for cable gland, clamping capacity: 18 mm

device mounting: Flush

IP degree of protection: IP65 conforming to IEC 60529

Complementary

number of vertical rows: 2

net weight: 0.87 kg

compatibility code: XAPM

Environment

protective treatment: TC

ambient air temperature for storage: -40…70 °C

ambient air temperature for operation: -40…70 °C

overvoltage category: Class I conforming to IEC 60536; Class I conforming to NF C 20-030

Offer Sustainability

Sustainable offer status: Green Premium product

REACh Regulation: Free of Substances of Very High Concern above the threshold

REACh free of SVHC: Yes

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free: Yes

Mercury free: Yes

RoHS exemption information: Yes

China RoHS Regulation: X

Environmental Disclosure: ENVPEP1806010EN

Circularity Profile: ENVEOLI1806010EN
