Schneider-Electric
XPEG211

range of product: Harmony XPE

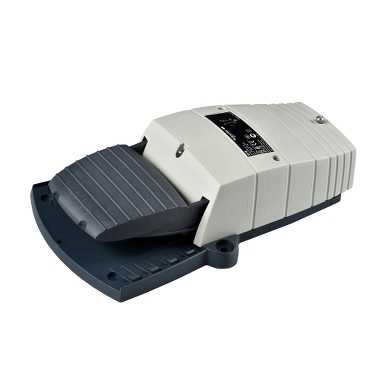

product or component type: Foot switch

material: Plastic

foot switch type: Single foot switch

device short name: XPEG

trigger mechanism: Without trigger mechanism

contact operation: 2 steps

contacts type and composition: 2 NC + NO

colour: Grey

positive opening: With conforming to EN/IEC 60947-5-1 appendix K

connections - terminals: Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end; Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end

cable entry: 2 plain holes for M20 cable gland

mechanical durability: 10000000 cycles

[Ie] rated operational current: 3 A, 240 V, AC-15, A300; 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A

[Ui] rated insulation voltage: 500 V (pollution degree 3) conforming to EN/IEC 60947-1; 500 V (pollution degree 3) conforming to NF C 20-040 group C; 500 V (pollution degree 3) conforming to VDE 0110 group C; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1

maximum resistance across terminals: 25 MOhm conforming to IEC 60255-7 category 3; 25 MOhm conforming to NF C 93-050 method A

short-circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1; 10 A cartridge fuse type gG conforming to VDE 0660-200

rated operational power in W: 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

net weight: 0.57 kg

compatibility code: XPEG

standards: UL 508; CSA C22.2 No 14; EN/IEC 60947-5-1

product certifications: UL; CSA

protective treatment: TH

ambient air temperature for operation: -25…70 °C

ambient air temperature for storage: -40…70 °C

vibration resistance: 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

shock resistance: 30 gn conforming to IEC 60068-2-27

overvoltage category: Class II conforming to EN/IEC 61140; Class II conforming to NF C 20-030

IP degree of protection: IP66 conforming to IEC 60529

Number of Units in Package 1: 1

Number of Units in Package 2: 12

Package 1 Height: 9.0 cm

Package 1 Length: 28.5 cm

Package 1 Weight: 836.0 g

Package 1 Width: 17.2 cm

Package 2 Height: 30.0 cm

Package 2 Length: 60.0 cm

Package 2 Weight: 10.931 kg

Package 2 Width: 40.0 cm

Unit Type of Package 1: PCE

Unit Type of Package 2: S04

Sustainable offer status: Green Premium product

REACh Regulation: Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free: Yes

RoHS exemption information: Yes

China RoHS Regulation: X

Environmental Disclosure: ENVPEP071104EN

WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
