Schneider-Electric

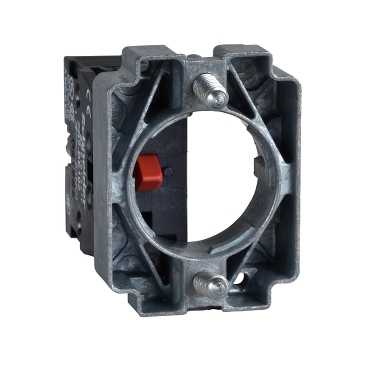

ZB2BZ102

component name: ZB2

Body type: Body for control button

Mounting diameter: 22 mm

Contacts type and composition: 1 NC

Connections - terminals: Screw clamps terminals

bezel material: Chromium plated metal

Terminals description ISO n°1: (11-12)NC

Light block colour: None

Light block supply: Without supply

Light source: Without

Unit Type of Package 1: PCE

Number of Units in Package 1: 1

Package 1 Height: 3.300 cm

Package 1 Width: 4.500 cm

Package 1 Length: 4.500 cm

Package 1 Weight: 41.500 g

Unit Type of Package 2: BB1

Number of Units in Package 2: 10

Package 2 Height: 4.500 cm

Package 2 Width: 9.100 cm

Package 2 Length: 16.500 cm

Package 2 Weight: 415.000 g

Unit Type of Package 3: S02

Number of Units in Package 3: 180

Package 3 Height: 15.000 cm

Package 3 Width: 30.000 cm

Package 3 Length: 40.000 cm

Package 3 Weight: 8.037 kg

REACh Regulation: Free of Substances of Very High Concern above the threshold

REACh free of SVHC: Yes

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free: Yes

Mercury free: Yes

China RoHS Regulation: X

RoHS exemption information: Yes

WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
