Schneider-Electric
XS208BLPAL2
Tariff code: 8536501990
This product is discontinued.
Please contact us for possible replacement product options.

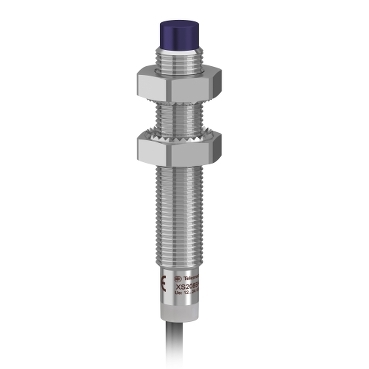

Link to the manufacturers site: XS208BLPAL2 - inductive sensor XS2 M8 - L42mm - brass - Sn2.5mm - 12..24VDC - cable 2m
Main
Range of produc: Telemecanique Inductive proximity sensors XS
Series name: General purpose
Sensor type: Inductive proximity sensor
Sensor name: XS2
Sensor design: Cylindrical M8
Size: 42 mm
Body type: Fixed
Enclosure material: Nickel plated brass
type of output signal: Discrete
Wiring technique: 3-wire
[Sn] nominal sensing distance: 2.5 mm
Discrete output function: 1 NO
Discrete output type: PNP
Electrical connection: Cable
Cable length: 2 m
[Us] rated supply voltage: 12...24 V DC with reverse polarity protection
Switching capacity in mA: <= 200 mA with overload and short-circuit protection
IP degree of protection: IP67 conforming to IEC 60529
Complementary
ISO thread: M8 x 1
Detection face: Frontal
Detector flush mounting acceptance: Non flush mountable
Material: Metal
Front material: PPS
Sensing range: > 0...2.5 mm
Operating zone: 0…2 mm
Differential travel: 1...15% of Sr
Output circuit type: DC
cable composition: 3 x 0.11 mm²
Wire insulation material: PVC
Status LED: Output state: 1 LED (yellow)
Supply voltage limits: 10…36 V DC
Switching frequency: <= 1000 Hz
Maximum voltage drop: <2 V (closed)
Current consumption: <= 10 mA no-load
Maximum delay first up: 15 ms
Maximum delay response: 5 ms
Maximum delay recovery: 0.3 ms
Marking: CE
Threaded length: 29 mm
Length: 42 mm
Net weight: 0.035 kg
Environment
product certifications: CSA; UL
ambient air temperature for operation: -25…70 °C
Ambient air temperature for storage: -40…85 °C
Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn for 11 ms conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.1 cm
Package 1 Width: 9.5 cm
Package 1 Length: 13.0 cm
Package 1 Weight: 63.0 g
Unit Type of Package 2: S02
Number of Units in Package 2: 22
Package 2 Height: 15 cm
Package 2 Width: 30 cm
Package 2 Length: 40 cm
Package 2 Weight: 1.925 kg
Unit Type of Package 3: P06
Number of Units in Package 3: 352
Package 3 Height: 75 cm
Package 3 Width: 60 cm
Package 3 Length: 80 cm
Package 3 Weight: 39.24 kg
Offer Sustainability
Sustainable offer status: Green Premium product
REACh Regulation: Reference contains Substances of Very High Concern above the threshold
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free: Yes
RoHS exemption information: Yes
Environmental Disclosure: ENVPEP111006EN
Circularity Profile: ENVEOLI1110045
