Schneider-Electric

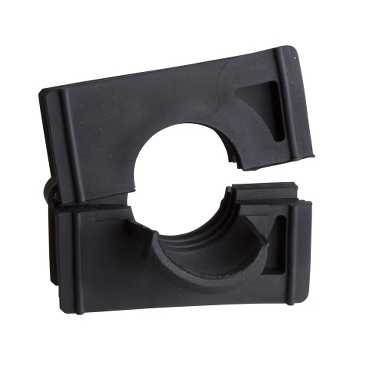

NSYCEJD11
Tariff code: 3926909790
This product is discontinued.
Please contact us for possible replacement product options.
Link to the manufacturers site: NSYCEJD11 - Cables passages, diameter 11-12mm. Mounted in cable entry matrix.Pkg 10
Main
Range: Spacial
Product or component type: Gasket for cable with connectors
accessory / separate part category: Cable management accessory
Device application: Multi-purpose
Range compatibility: Spacial (Spacial S3D) compact enclosure; Spacial (Spacial CRN) compact enclosure; Spacial (Spacial SF) suitable enclosure; Spacial (Spacial S3CM) control enclosure; Spacial (Spacial SBM) industrial box; Thalassa (Thalassa PLA) suitable enclosure; Thalassa (Thalassa PHD) suitable enclosure; Thalassa (Thalassa PLM) compact enclosure; Thalassa (Thalassa PLS) insulating modular box
Device composition: 1 gasket
Quantity per set: Set of 10
Complementary
Accessory / separate part destination: Cable
Mounting support: Cable entries plate for connectors
Material: Thermoplastic rubber
Cable entry number: 1
Cable entry number: 1 x 11…12 mm
cable outer diameter: 11…12 mm
Net weight: 0.009 kg
Packing Units
Unit Type of Package 1: Db
Number of Units in Package 1: 1
Package 1 Height: 12.0 cm
Package 1 Width: 10.0 cm
Package 1 Length: 2.0 cm
Package 1 Weight: 9.0 g
Offer Sustainability
Sustainable offer status: Green Premium product
REACh Regulation: Free of Substances of Very High Concern above the threshold
REACh free of SVHC: Yes
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free: Yes
China RoHS Regulation: Product out of China RoHS scope. Substance declaration for your information
RoHS exemption information: Yes
Environmental Disclosure: ENVPEP110923EN
