Schneider-Electric

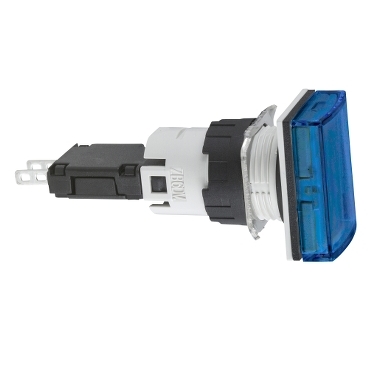

XB6DV6BB

range of product: Harmony XB6

product or component type: Complete pilot light

device short name: XB6

bezel material: Plastic

mounting diameter: 16 mm

sale per indivisible quantity: 1

shape of signaling unit head: Rectangular

cap/operator or lens colour: Blue

light source: LED

bulb base: Integral LED

light block supply: Direct

[Us] rated supply voltage: 12...24 V AC/DC

height: 18 mm

width: 24 mm

depth: 57 mm

terminals description ISO n°1: (+ -)PL

net weight: 0.015 kg

operating position: Any position

connections - terminals: Faston connectors, connection size: 2.8 x 0.5 mm

[Ui] rated insulation voltage: 250 V (pollution degree 2) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage: 4 kV conforming to EN/IEC 60947-1

signalling type: Steady

supply voltage limits: 6…30 V AC/DC

current consumption: 15 mA

surge withstand: 1 kV direct contact conforming to IEC 61000-4-5; 2 kV in free air conforming to IEC 61000-4-5

protective treatment: TC

ambient air temperature for storage: -40…70 °C

ambient air temperature for operation: -25…70 °C

electrical shock protection class: Class II conforming to IEC 61140

IP degree of protection: IP65 conforming to IEC 60529

NEMA degree of protection: NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94

standards: CSA C22.2 No 14; EN/IEC 60947-1; JIS C 852; EN/IEC 60947-5-1; UL 508; EN/IEC 60947-5-5; JIS C8201-5-1; JIS C8201-1

product certifications: CCC; CSA; UL; GOST

vibration resistance: +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

resistance to fast transients: 2 kV conforming to IEC 61000-4-4

resistance to electromagnetic fields: 10 V/m conforming to IEC 61000-4-3

resistance to electrostatic discharge: 6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

electromagnetic emission: Class B conforming to EN 55011

Number of Units in Package 1: 1

Number of Units in Package 2: 60

Package 1 Height: 2.0 cm

Package 1 Length: 6.0 cm

Package 1 Weight: 9.4 g

Package 1 Width: 2.5 cm

Package 2 Height: 15.0 cm

Package 2 Length: 40.0 cm

Package 2 Weight: 808.0 g

Package 2 Width: 30.0 cm

Unit Type of Package 1: PCE

Unit Type of Package 2: S02

Sustainable offer status: Green Premium product

REACh Regulation: Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free: Yes

RoHS exemption information: Yes

China RoHS Regulation: X

Environmental Disclosure: ENVPEP1710010EN

Circularity Profile: ENVEOLI1710010EN

WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
