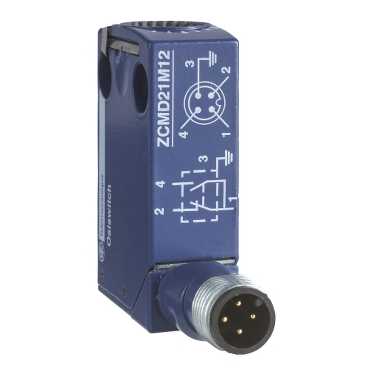

ZCMD21C12
Tariff code: 8536508090
Link to the manufacturers site: ZCMD21C12 - limit switch body ZCMD - 1NC+1NO - silver - snap action - connection - M12
Main
Range of produc: Telemecanique Limit switches XC Standard
Series name: Standard format
Product or component type: Limit switch body
Device short name: ZCMD
Design: Miniature
Body type: Fixed
Associated head: ZCE66; ZCEF2; ZCE14; ZCE62; ZCE06; ZCE09; ZCE21; ZCE28; ZCE27; ZCE64; ZCE65; ZCEG1; ZCE10; ZCE11; ZCE01; ZCE29; ZCE67; ZCE24; ZCE07; ZCE13; ZCE02; ZCE63; ZCEF0; ZCE08
body material: Zamak
Number of poles: 2
Contacts type and composition: 1 NC + 1 NO
contact operation: Snap action
Complementary
Product compatibility: XCMD
Electrical connection: Male connector M12, 5 pins
Contacts insulation form: Zb
Contacts material: Silver plated contacts
Positive opening: With
Minimum actuation speed: 0.01 m/min
[Ie] rated operational current: 0.22 A at 50 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A; 3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 4 A
[Ui] rated insulation voltage: 60 V (pollution degree 3) conforming to IEC 60947-5-1
Maximum resistance across terminals: 25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage: 0.8 kV conforming to IEC 60664; 0.8 kV conforming to IEC 60947-1
Short-circuit protection: 4 A cartridge fuse, type gG
Electrical durability: 5000000 cycles, DC-13 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 5000000 cycles, DC-13 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Width: 30 mm
height: 50 mm
Depth: 16 mm
Net weight: 0.065 kg
device presentation: Basic element
Compatibility code: ZCMD
Environment
Ambient air temperature for storage: -40…70 °C
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2 cm
Package 1 Width: 6 cm
Package 1 Length: 8 cm
Package 1 Weight: 78 g
Offer Sustainability
Sustainable offer status: Green Premium product
REACh Regulation: Reference contains Substances of Very High Concern above the threshold
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free: Yes
RoHS exemption information: Yes
Environmental Disclosure: ENVPEP110612EN
Circularity Profile: ENVEOLI110612EN
