Schneider-Electric
SDN2201260

range: Sedna

range of product: Sedna

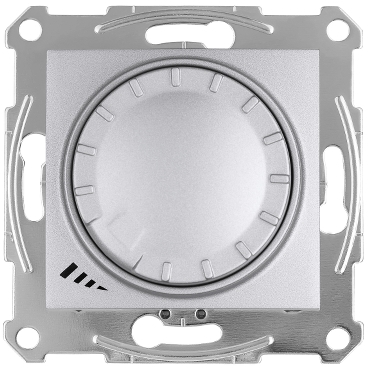

device short name: SBD200LED

product or component type: Dimmer

device application: Control

colour tint: Aluminium

dimmer type: Universal

dimmer control: Rotary push type

control type: Rotary push type

switch function: 1-pole 2-way

load type: incandescent lamp; 230 V halogen lamp; LED lamp; low voltage halogen lamp with ferromagnetic transformer; low voltage halogen lamp with electronic transformer

power range: Halogen lamp: 4...400 W; Incandescent lamp: 4...400 W; LED lamp: 4...40 W (RL LED mode); LED lamp: 4 W...200 VA (RC LED mode); Low voltage halogen lamp with electronic transformer: 4...400 W; Low voltage halogen lamp with ferromagnetic transformer: 4 W...400 VA

[Ue] rated operational voltage: 230 V AC 50/60 Hz

rated current: 10 A at 230 V AC

protection type: Electronic short-circuit and automatic overload protection

connections - terminals: Screw terminals

number of loop terminals: 1

clamping connection capacity: 1 x 2.5 mm² for solid or flexible with sleeve cable(s); 2 x 1.5 mm² for solid or flexible with sleeve cable(s)

material: Thermoplastic: central plate; Thermoplastic: knob

device mounting: Flush

fixing mode: By screws

embedding depth: 29 mm

height: 71 mm

width: 71 mm

depth: 51 mm

market segment: Small buildings; Residential

ambient air temperature for operation: -5…35 °C

relative humidity: 5…95 %

IP degree of protection: IP20 also with visual parts removed

REACh Regulation: Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive: Compliant

Mercury free: Yes

RoHS exemption information: Yes

China RoHS Regulation: Product out of China RoHS scope. Substance declaration for your information

WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
