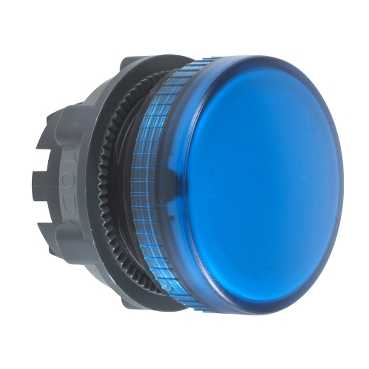

ZB5AV06

Range of produc: Harmony XB5

Product or component type: Head for pilot light

Product compatibility: BA 9s

Device short name: ZB5

bezel material: Dark grey plastic

Mounting diameter: 22 mm

Head type: Standard

Sale per indivisible quantity: 1

Shape of signaling unit head: Round

Cap/operator or lens colour: Blue

Operator additional information: With plain lens

CAD overall width: 29 mm

CAD overall height: 29 mm

CAD overall depth: 31 mm

Net weight: 0.018 kg

Main group: Pilot light

Group of product: Lens fitted BA9s

Station name: XALD 1...5 cut-outs; XALK 2...5 cut-outs

Cap/operator or lens colour: Blue

Electrical composition code: P3 in front mounting with BA 9s; P4 in front mounting with BA 9s and transformer; PF2 in front mounting with BA 9s

device presentation: Basic element

customizable: No

Customizable: 1

GCR BRIDGE: ZB5AVCUST01

Compatibility code: ZB5

Protective treatment: TH

Ambient air temperature for storage: -40…70 °C

ambient air temperature for operation: -40…70 °C

Overvoltage category: Class II conforming to IEC 60536

IP degree of protection: IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

NEMA degree of protection: NEMA 13; NEMA 4X

Resistance to high pressure washer: 7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection: IK05 conforming to IEC 50102

Standards: EN/IEC 60947-1; EN/IEC 60947-5-4; JIS C8201-5-1; EN/IEC 60947-5-5; UL 508; CSA C22.2 No 14; EN/IEC 60947-5-1; JIS C8201-1

Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1: PCE

Number of Units in Package 1: 1

Package 1 Height: 3.4 cm

Package 1 Width: 4.7 cm

Package 1 Length: 5.4 cm

Package 1 Weight: 16 g

Unit Type of Package 2: S03

Number of Units in Package 2: 300

Package 2 Height: 30 cm

Package 2 Width: 30 cm

Package 2 Length: 40 cm

Package 2 Weight: 5.181 kg

Package 3 Height: 4.5 cm

Sustainable offer status: Green Premium product

REACh Regulation: Free of Substances of Very High Concern above the threshold

REACh free of SVHC: Yes

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free: Yes

Mercury free: Yes

China RoHS Regulation: X

RoHS exemption information: Yes

Environmental Disclosure: ENVPEP1710010EN

Circularity Profile: ENVEOLI1710010EN
