Schneider-Electric
XS8E1A1MAL01U20
Tariff code: 8536508090

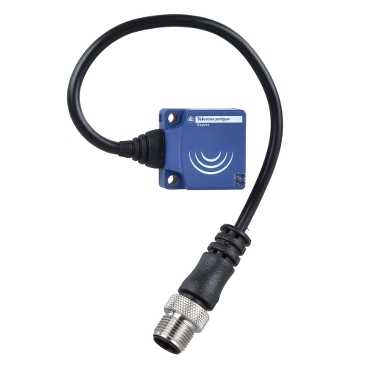

Link to the manufacturers site: XS8E1A1MAL01U20 - inductive sensor XS8 26x26x13 - PBT - Sn15mm - 24..240VAC/DC - 1/2" 0.15m
Main
Range of produc: Telemecanique Inductive proximity sensors XS
Series name: General purpose
Sensor type: Inductive proximity sensor
Device application: -
Sensor name: XS8
Sensor design: Flat form 26 x 26 x 13
Size: 13 mm
Body type: Fixed
Detector flush mounting acceptance: Non flush mountable
Material: Plastic
Enclosure material: PBT
type of output signal: Discrete
Wiring technique: 2-wire
[Sn] nominal sensing distance: 10 mm flush mountable; 15 mm non flush mountable
Discrete output function: 1 NO
Output circuit type: AC/DC
Electrical connection: Remote male connector 1/2"20 UNF, 3 pins
Cable length: 0.15 m
[Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz
Switching capacity in mA: 5...200 mA AC/DC
IP degree of protection: IP67 double insulation conforming to IEC 60529
Complementary
Detection face: Frontal
Front material: PBT
Sensing range: > 8...15 mm
Fine adjustment zone: 5…10 mm flush mountable; 5…15 mm non flush mountable
Differential travel: 1...15% of Sr
Wire insulation material: PVC
Supply voltage limits: 20…264 V AC/DC
Maximum residual current: 1.5 mA open state
Switching frequency: <= 2000 Hz
Maximum voltage drop: <5.5 V (closed)
Current consumption: <= 10 mA no-load
Maximum delay first up: 10 ms
Maximum delay response: 0.3 ms
Maximum delay recovery: 0.8 ms
Marking: CE
Depth: 13 mm
height: 26 mm
Width: 26 mm
Net weight: 0.04 kg
Environment
product certifications: CSA; UL; CCC; Ecolab
ambient air temperature for operation: -25…70 °C
Ambient air temperature for storage: -40…85 °C
Vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn for 11 ms conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.0 cm
Package 1 Width: 6.6 cm
Package 1 Length: 9.5 cm
Package 1 Weight: 54.0 g
Unit Type of Package 2: S02
Number of Units in Package 2: 44
Package 2 Height: 15.0 cm
Package 2 Width: 30.0 cm
Package 2 Length: 40.0 cm
Package 2 Weight: 2.717 kg
Offer Sustainability
Sustainable offer status: Green Premium product
REACh Regulation: Reference contains Substances of Very High Concern above the threshold
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free: Yes
RoHS exemption information: Yes
Environmental Disclosure: ENVPEP071001EN
Circularity Profile: N/A
